CONTROL CABLE

7 X 7 Flexible Control Cable
Has seven strands of seven wires each. Used for control purposes where extreme flexibility is not required but where abrasion is a factor.

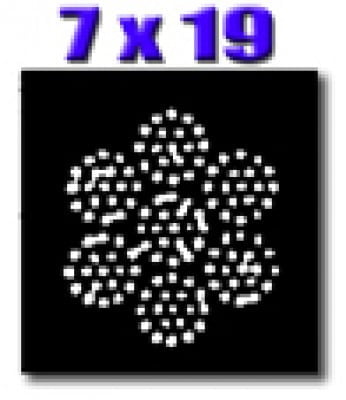

7 X 19 Flexible Control Cable
Has seven strands of 19 wires each. Its greater metallic area makes it stronger than 7 X 7 cable. Because of its fine wires the best service is obtained where abrasion is not too severe. These same wires, however, make it flexible to meet severe bending.

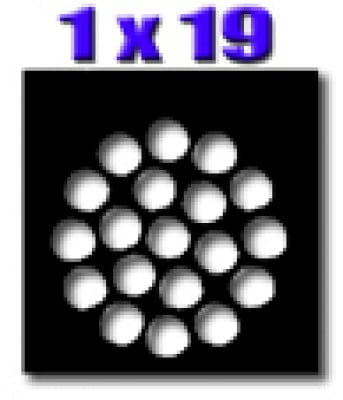

1 X 19 Non-Flexible Cable
Is one strand of 19 wires. It has more metallic area than 7 x 7 or 7 x 19 constructions which makes it the strongest but also the least flexible. 1 x 19 is generally used for bracing purposes, drag and anti-drag wires. It is often used with swage type terminals.
