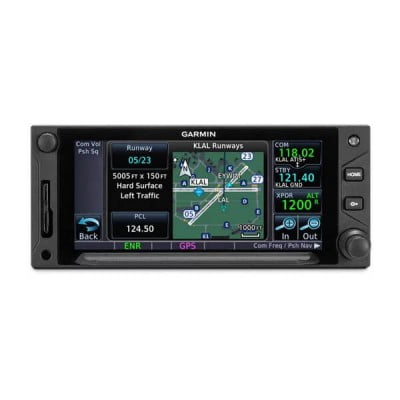

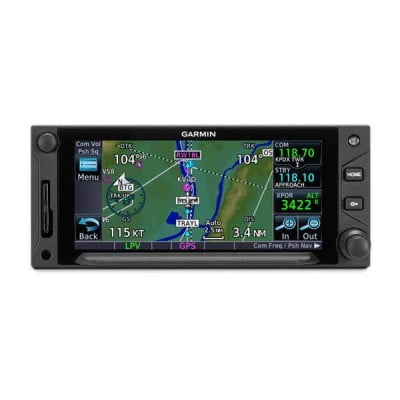

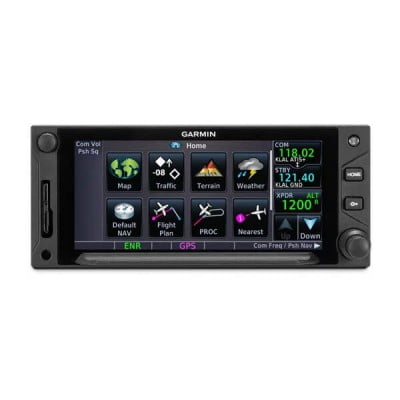

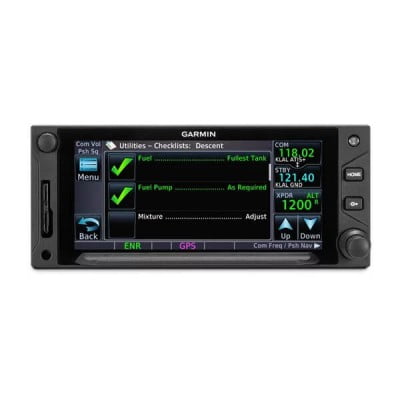

GARMIN GTN 650XI GPS / NAV / COMM SYSTEM FOR EXPERIMENTAL AIRCRAFT
SKU: N/D
Categorías: GPS, Panel Mount, SUMINISTROS PARA PILOTOS
Overview
| Note: Per Garmin, even though this product is certified, we can only sell over the counter to experimental aircraft (must verify) with wire harness.
Garmin is changing the course of aviation yet again! Introducing the GTN 650XI. With more pixels, more processing power, more speed and performance, the GTN 650Xi system brings exciting new growth capabilities to the industry’s premier GPS/Nav/Comm/MFD platform. Brighter, Faster, Sharper, Better
Work Saving Ways to Tune and Display
|
Specifications
- TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
- Display size: 4.9″ (125 mm) diagonal
- Display resolution: 834 pixels (W) x 370 pixels (H)
- Unit bezel height: 2.65″ (67 mm)
- Unit bezel width: 6.25″ (159 mm)
- Unit depth with connectors: 11.25″ (286 mm) (measured from face of aircraft panel to rear of connector backshells)
- Unit weight: 5.5 lbs (2.48 kg)
- Input voltage range: 11 VDC – 33 VDC
- Operating temperature range: -20° C to 55° C (-4° F to 131° F)
- Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
- LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
- Maximum velocity: 1,166 knots
- Position update Interval: 0.2 sec (5 Hz)
Compatible Interfaces
| Interface | Manufacturer | Model | Notes/Info |
|---|---|---|---|
| Air Data Computer | B & D | 90004-003 | |
| Honeywell (Bendix/King) | KDC 281 | ||
| KDC 481 | |||
| Insight | TAS 1000 | ||
| Altitude Serializer/Encoder | Garmin | GTX 327 | |
| ACK Technologies | A-30 (Mod 8 and above) | ||
| ARNAV | FC-10 | ||
| FT-10 | |||
| Electronics International | FP-5L | ||
| Icarus Instruments | 3000 | ||
| JP Instruments | EDM-700 | ||
| Sandia | SAE 5-35 | ||
| Shadin | 833811-00 (AIS-380) | ||
| 8800T | |||
| 9000T | |||
| 9200T | |||
| F/ADC-200 | |||
| F/ADC-2000 | |||
| 91204XT(38)D (Miniflo-L) | |||
| 91053XP (Digiflo-L) | |||
| 91053XT-D (Digiflo-L) | |||
| 912802-( ) (Digidata) | |||
| Trans-Cal Industries | IA-RS232-X | ||
| SSD120 | |||
| Audio Panel | Garmin | SL10 | |
| SL10MS | |||
| SL10M | |||
| SL10S | |||
| SL15 | |||
| SL15M | |||
| GMA 340 | |||
| GMA 347 | |||
| GMA 35(c) | |||
| GMA 350(c)/350H(c) | |||
| Honeywell (Bendix/King) | KMA 24 | ||
| KMA 24H-70/71 | |||
| KMA 26 | |||
| KMA 28 | |||
| PS Engineering | PMA 6000 | ||
| PMA 7000 Series | |||
| PMA 8000 Series | |||
| Autopilot | Garmin | GFC 500 | |
| GFC 600 | |||
| Bendix | M4C | ||
| M4D | |||
| Century | I/II/III/IV | ||
| 21/31/41 | |||
| 2000 | |||
| Trident | |||
| AK 1081 | |||
| Cessna | 300B/400B/800B | ||
| 300 IFCS/400 IFCS/800 IFCS/1000 IFCS | |||
| Collins | APS 65 ( ) | ||
| Honeywell (Bendix/King) | KAP 100/140/150 | ||
| KFC 150/200/250/300 | |||
| KFC 225/275/325 | |||
| Sperry | SPZ 200A/500 | ||
| S-TEC | System 20/30/40/50/55/60-1/60-2/60 PSS/65 | ||
| System 55X | |||
| ST-901 | |||
| Datalink Weather Display and Control | Garmin | GDL 69/69A | GDL 69A also provides SiriusXM radio entertainment. |
| GSR 56 | GSR 56 also provides text/voice communication | ||
| DME Control | Collins | DME 40 | |
| DME 42 | |||
| Honeywell (Bendix/King) | KN62/62A | ||
| KN63 | |||
| KN64 | |||
| KDI 572/574 | |||
| KDM 706 | |||
| Narco | DME 890 | ||
| IDME 891 | |||
| EFIS | Garmin | G500/G600 | |
| TXi Series | |||
| G5 | |||
| G3X Touch | |||
| Avidyne | EXP5000 | ||
| Honeywell (Bendix/King) | EFS 40/50 (SG 465) | ||
| EHSI | Sandel | SN 3308 | |
| SN3500/4500 | |||
| FIS-B Weather Display and Control | Garmin | GDL 88 | |
| Fuel/Air Data | Garmin | GTX 327 | |
| ARNAV | FC-10 | ||
| FT-10 | |||
| Electronics International | FP-5L | ||
| JP Instruments | EDM-700 | ||
| Shadin | F/ADC-200 | ||
| F/ADC-2000 | |||
| 91204XT(38)D (Miniflo-L) | |||
| 91053XP (Digiflo-L) | |||
| 91053XT-D (Digiflo-L) | |||
| 912802-( ) (Digidata) | |||
| IRU/AHRS | Collins | AHS-85E | |
| Lightning Detection Display and Control | L-3 Communications | WX-500 | |
| Multifunction Display | Garmin | GMX 200 | |
| MX20 | |||
| Avidyne | EX500 | ||
| EX5000 | |||
| NAV Indicator | Garmin | GI 102/A | |
| GI 106/A | |||
| Century | NSD 360A | ||
| NSD 1000 | |||
| Collins | 331A-6P | ||
| 331A-9G | |||
| PN101 (331A-3F/3G) | |||
| IND-351D | |||
| Honeywell (Bendix/King) | KI 202A/203/204/206 | ||
| KI 208/A | |||
| KI 209/A | |||
| KI 525A | |||
| KPI 552/B | |||
| KPI 553/A/B | |||
| Mid Continent | MD222-402 | ||
| MD222-406 | |||
| MD200-302/303/306/307 | |||
| Sperry | RD 444 | ||
| RD 550A | |||
| RD 650 | |||
| S-TEC | ST 180 | ||
| Synchro Heading Source | Bendix/King | KI-525A | |
| TAS/TCAS/TIS Traffic Display and Control | Garmin | GTS 800/820/850 | |
| GTX 330/33/330D/33D | |||
| Avidyne (Ryan) | TAS 6XX (TCAD 9900BX) | ||
| Honeywell (Bendix/King) | KMH 880 (KMH 820) | ||
| KMH 980 (KMH 920) | |||
| KTA 870 (KTA 810) | |||
| KTA 970 (KTA 910) | |||
| L-3 Communications | SKY497 (Skywatch) | ||
| SKY899 (Skywatch HP) | |||
| Terrain Avoidance and Warning System | Honeywell (Bendix/King) | KGP 560 | |
| KMH 880 (KMH 820) | |||
| KMH 980 (KMH 920) | |||
| Transponder Display and Control | Garmin | GTX 32 | |
| GTX 327 | |||
| GTX 328 | |||
| GTX 33/33D | |||
| GTX 330/330D | |||
| GTX 325/335(R)/345(R) | |||
| Weather Radar Display and Control | Garmin | GWX 68 | |
| GWX 70 | |||
| GWX 75 | |||
| Bendix/King | RDS 81 (RS 811A) | ||
| RDS 82 (RS 181A) | |||
| RDR 2000 (ART 2000) | |||
| RDR 2100 (ART 2100) |
-
HARNESS:
Unit with 4ft Wire Pigtail, Unit with Custom Wire Pigtail
-
DATABASE:
Americas, International, Select at Purchase
