GARMIN GTN 750XI GPS/NAV/COM/MFD SYSTEM WITH HARNESS FOR EXPERIMENTAL AIRCRAFT
SKU: N/D
Categorías: GPS, Panel Mount, SUMINISTROS PARA PILOTOS
Overview

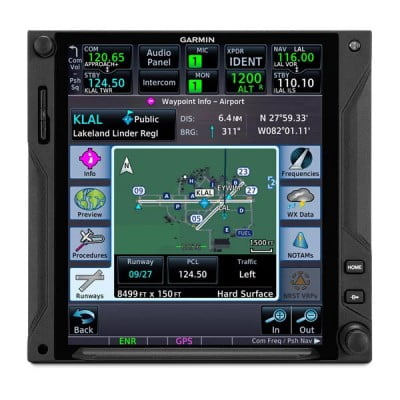

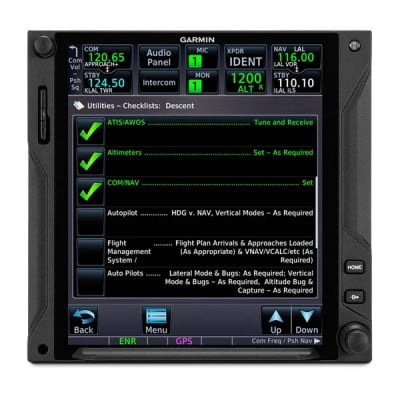

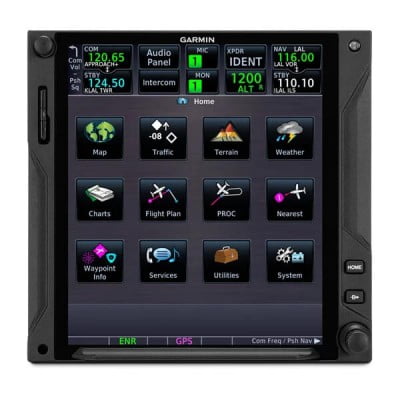

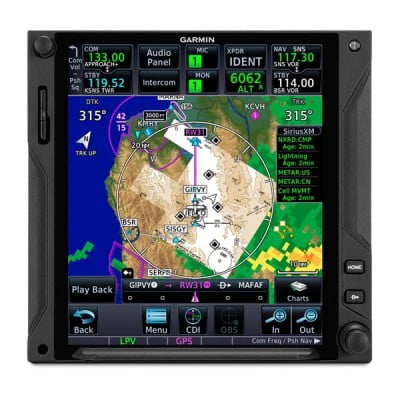

| **Note: Per Garmin, We can only offer this product to experimental aircraft with harness Packed full of powerful avionics, the GTN 750XI is a fully integrated GPS/NAV/COMM solution. The 6-in.-tall system’s intuitive touchscreen controls and large display give you unprecedented access to high-resolution terrain mapping, graphical flight planning, geo-referenced charting, traffic display, satellite weather and much more.Tap into a new generation of faster, smarter avionics. With more pixels, more processing power, more speed and performance, the GTN 750Xi system brings exciting new growth capabilities to the industry’s premier GPS/Nav/Comm/MFD platform. Visualize your entire flight plan, including holds and approaches on a big 6.9” touch display. High-speed processors cut boot-up time by 50% over earlier GTN models. Fly the approaches you want — from visual glidepaths to LPV, RNAV, ILS and more. It’s interface-friendly with a wide range of existing avionics, autopilots and flight displays. Wirelessly load flight plans and database updates with an optional Connext® link. Brighter, Faster, Sharper, Better
Work Saving Ways to Tune and Display
|
In the Box
- GTN 750XI
Specifications
- TSO applicability: C74d Class A; C112e; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C194; C195b Class B1, B3, B5, B7; C209
- Display size: 6.9″ (175.3 mm) diagonal
- Display resolution: 834 pixels (W) x 986 pixels (H)
- Unit bezel height: 6.00″ (152.0 mm)
- Unit bezel width: 6.25″ (159.0 mm)
- Unit depth with connectors: 11.25″ (286 mm) (measured from face of aircraft panel to rear of connector backshells)
- Unit weight: 5.7 lbs (2.60 kg)
- Input voltage range: 11 VDC – 33 VDC
- Operating temperature range: -20° C to 55° C (-4° F to 131° F)
- Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
- LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
- Maximum velocity: 1,166 knots
- Position update Interval: 0.2 sec (5 Hz)
-
MODELO:
Unit With 4ft Wire Pigtail, Unit With Custom Wire Pigtail
-
DATABASE:
Americas, International, Select at Purchase
