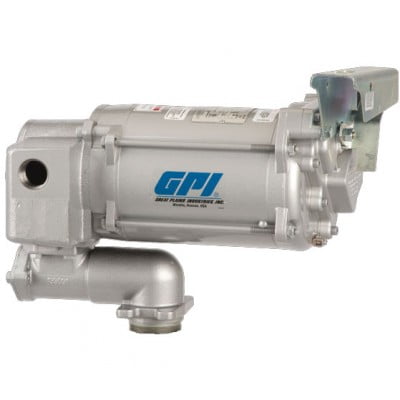

GPI AVIATION REFUELING PUMP M-3130-AV-PO

Name: GPI AVIATION REFUELING PUMP M-3130-AV-PO
SKU: 22020
Availability: InStock

Part# 08-07466

2,033.02$ + IVA

Overview

GPI AVIATION REFUELING PUMP:
For use with personal aircraft.

115/230-Volt
30 GPM / 114 LPM
Motor is U.L. Listed to U.S. and Canadian Standards
Gasoline, Gasoline/Ethanol blends at levels designated as “gasohol” (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).

These Aviation Pumps are only intended to be groundbased or vehicle mounted. Do not use or mount in or on the aircraft.

Model: M-3130-AV-PO
Voltage & Type: 115 or 230-volt AC – Vane
Flowrate: 30 gpm, 114 lpm
Duty Cycle: 30 minutes on / 30 minutes off
Nozzle : None
Inlet/Outlet Size: 1 1/4 in. / 1 in.
Suction Pipe: None
Hose: None
Motor Protection: Internal temperature limiting device
Bypass Pressure: 20 psi 1.4 bar
Current Draw: 9.8 amps
Unique Feature: Unique strainer and poppet design allows for easy access and maintenance.
Use with: Gasoline, Gasoline/Ethanol blends at levels designated as “gasohol” (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).
Approvals : Motor is U.L. Listed to U.S. and Canadian Standards.
Warranty: 2 Year
