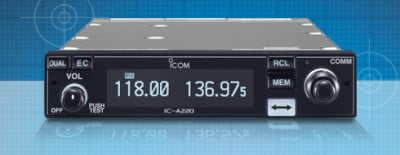

ICOM IC A220 TRANSCEIVER – PANEL MOUNT – NON-TSO FOR EXPERIMENTAL AIRCRAFT
Overview
|
Innovation White OLED Display and White Key Back light Easy channel selection GPS memory function 12V/24V DC power source Intercom functions Easy installation |
Features
- 20 regular memory channels with a 6-character channel name
- 50 group memory channels (10 Ch x 5 groups) with a channel tag
- Automatic weather channel scanning and receive (USA version only)
- Dualwatch and priority watch functions
- One-touch access to 121.5 MHz emergency frequency
- Side tone function for monitoring your voice with headset
- ANL (Automatic Noise Limiter) function reduces pulse type noise
- Remote control capability
- PC programming capability
- Dial lock and panel lock
- Time-out timer
- D-Sub 25-pin industry standard connector for easy installation
- Slim 1.34 inch (34mm) height can be installed in a limited panel space
- Two types of menu mode: settings menu and configuration menu
In the Box
- A220 Transceiver – 1
- Mounting bracket – 1
- D-Sub 25 pin connector – 1
- Connector pins (M39029/63-368) – 25
- Screws Bind UNC (No. 4 × 3/8) – 2
- K-Lock Nut (No. 4) – 2
- BNC-LP – 1
- Washer (Icom washer V) – 1
- C-shaped ring – 1
- Antenna cable clip – 1
- Self crimping nut (No. 6) – 1
- Screw (No. 6 × 1/2) – 1
- Nut (No. 6) -1
- Crimp nuts (No. 6)- 6
- Speed nut UNC (No. 6) – 4
- Screws (No. 6 × 1/2) – 6
- COMM1 sticker
- COMM2 sticker
Specifications
General
| Frequency coverage: | |
| Tx/Rx | |
| 8.33kHz spacing | 118.000–136.992MHz |
| 25kHz spacing | 118.000–136.975MHz |
| Rx Wx channels | 161.650–163.275MHz* |
| (*USA version only.) | |
| Mode: | AM (6K00A3E, 5K60A3E) |
| Frequency spacing: | 8.33kHz/25kHz |
| Frequency stability: | ±5ppm |
| Operating Temperature: | -20°C to +55°C |
| Antenna impedeance: | 50Ω |
| No. of memory channels: | 20 regular memory, |
| 50 group memory, | |
| 10 GPS, | |
| 10 Weather*, | |
| 20 auto stack memory | |
| (* USA version only) | |
| Power supply requirement: | 13.8V/27.5V DC (Negative ground) |
| Dimensions (W×H×D): | 160×34×271 mm; 6.3×1.34×10.67 in |
| (projections not included) | |
| Weight (approx.): | 1.0 kg; 2.2 lb |
| Transmitter | |
| Output power: | 8 W typical (carrier power) |
| Spurious emission: | –60dBc |
| Modulation limiting: | 70% (Maximum 98%) |
| Microphone impedance: | 600Ω |
| Receiver | |
| Intermediate frequencies: | 38.85MHz/450kHz (1st/2nd) |
| Sensitivity: | |
| AM | Less than 2μV |
| FM | Less than 1.4μV |
| Selectivity: | |
| 25kHz spacing | ±3kHz/±22kHz (6dB/60dB) |
| 8.33kHz spacing | ±2.778kHz/±7.37kHz (6dB/60dB) |
| Spurious rejection: | More than 74dBμ |
| Audio output power: | |
| External SP | 5W with a 4Ω load |
| Headphone | 60mW with a 500Ω load |
