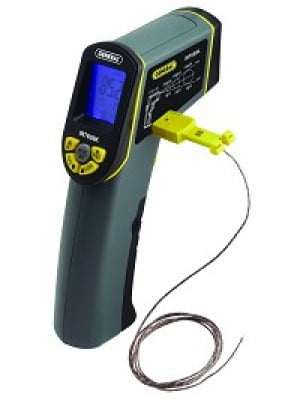

INFRARED THERMOMETER WITH STAR BURST LASER TARGETING / K PROBE

Overview

Features

• 12:1 distance-to-spot (D:S) ratio
• IRT measurement range -58° to 1202°F (-50° to 650°C)
• “K” type thermocouple measurement range: -146° to 2498°F (-99° to 1370°C)
• Includes “K” type thermocouple with 0° to 500°F (-18° to 260°C) range
• Automatically stores last 10 readings for recall
• Automatically holds measurements and displays Min/Max/Avg/Dif session values
• Settable high and low temperature alarms
• Adjustable emissivity from 0.1 to 1.0 (in 0.01 steps)
• Auto Power Off
• Power Source: 1 “9V” battery (included)

Specifications

• Distance to Spot Ratio: 12:1
• IRT Measurement Range: -58° to 1202°F (-50° to 650°C)
• “K” Type Thermocouple Measurement Range: -146° to 2498°F (-99° to 1370°C)
• IRT Measurement Accuracy: ±4°F/C or ±2% of reading >32°F (0°C) ±3°F/C or ±3% of reading <32°F (0°C)
• “K” Port Measurement Accuracy: ±1° (F or C)
• Display Resolution (IR or TC Measurement): 0.1° (F or C)
• Laser Pointer Wavelength: 630-660nm
• Laser Power: Class II (<3mW)
• Current Consumption: 30mA, max
• Response Time: 0.5 second s
• Emissivity: Adjustable from 0.1 to 1.0 (in 0.01 steps), with default value of 0.95
• Auto Power Off: After 30 seconds
• Dimensions: 6.9 x 3.6 x 1.5 in. (175 x 91.5 x 38mm)
• Weight: 5.93 oz. (168g)
• Power Source: 1 “9V” battery (included)

In The Box

• 1 “9V” Battery and User’s Manual
• “K” Probe enclosed in pouch
