KP SERIES BEARINGS AN200 MS27640

KP SERIES BEARINGS AN200 MS27640 - Image 2

KP SERIES BEARINGS AN200 MS27640

Categorías: BEARINGS, KP SERIES, PARTES DE FUSELAJE

Descripción

Overview

Single row, ball, heavy duty
PTFE seals and CRES sealcaps
Exposed surfaces except bore, caps, and seals are cadmium plated
Prelubricated for life

Specifications

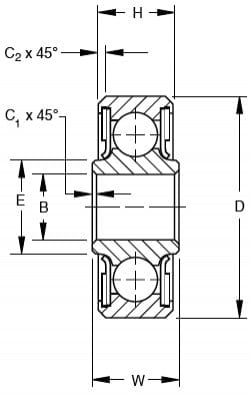

PN	Bore B	Outside Inner D	Width Outer Ring W	Width Inner H	Shoulder Width Bore Ring	Inner Ring OD	Outer Ring Corner Chamfer	Balls	Pure Moment	Moment Constant	Wgt
KP3L	0.19	0.625	0.245	0.203	0.285	0.005	0.01	10/5/1932	51.8	12.08	0.01
KP3	0.19	0.7774	0.297	0.27	0.331	0.005	0.022	12/5/1932	93.7	10.13	0.03
KP4	0.25	0.9014	0.484	0.335	0.39	0.005	0.032	11/1/2004	130	8.84	0.04
KP5	0.3125	1.25	0.558	0.375	0.469	0.015	0.032	9/5/2016	335	6.77	0.09
KP6	0.375	1.4375	0.62	0.469	0.591	0.015	0.032	10/11/1932	580	5.44	0.15
KP8	0.5	1.6875	0.62	0.5	0.768	0.015	0.044	10/11/1932	1060	4.46	0.21
