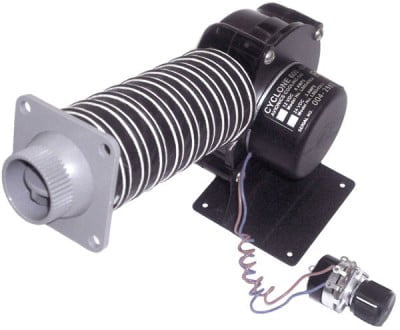

LONESTAR VENTILATION BLOWER KIT
SKU: N/D
Categorías: AVIONICS, VENTILADORES-DE-REFRIGERACIOM
Overview
| The Frosty dc motor is the same as our FAA PMA 6 port blower and has been STC approved as well. The blower’s footprint is an ultra small size measuring (3.50L”x 3.50W”x 4.50H) for the blower, universal mounting bracket and speed control module. This ventilation kit is compatible with Experimental, Sport, GA, Rotor-craft, Business, Commercial aircraft, as well as Land-Mobile, Marine and Military Vehicles.
Designed for 12 and 24 volt systems the blower kit can be easily upgrade any aircraft with space for the blower, panel eyeball vents and a speed control POT. The Frosty ventilation blower includes the blower, (12/24vdc) universal mounting bracket and install Kit (LS03-02060) only. |
Specifications
- Dimensions: 8 × 6 × 4 in
- Weight: 2.00 oz
- Voltage: LS03-03042 12VDC
- LS03-03043 24VDC
- Blower Housing: Phenolic
- Light Weight: .70 lbs.
- Voltage: 12 and 24 vdc models
- Amperage: .500 ma max.
- Rheostat, Low, Med, High Air Flow
- 2250 FPM Air – Flow
- Neoprene Ducting, included
- Eye Ball (gray) Panel mounted)
- Universal Mounting Bracket: Alum
- Operating Temp: -55C to +70C
- PMA dc motor, electronics
- Ultra-Small Size: 1.40H x 2.40W x 4.70L
- Easy Installation: (1/4-20 x2), (10-32)
- 1 year Limited Warranty
-
VOLTAGE:
12V, 24V
