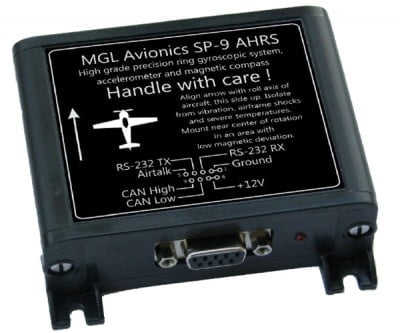

MGL SP-9 RING GYRO ATTITUDE HEADING SENSOR ( HORIZON/COMPASS)

MGL SP-9 RING GYRO ATTITUDE HEADING SENSOR ( HORIZON/COMPASS)

Categorías: ,

Part# 11-16717

Overview

The SP-9 is a high grade ring gyro based AHRS and built in SP-6 magnetometer for magnetic heading. The SP-9 employs the latest micro-machined ring gyroscope technology for performance that approaches FOG class ability in practical applications. Adding ORION class high accuracy accelerometers results in an IMU grade AHRS.

Suitable Applications: Select the SP-9 for high performance aircraft applications and for IFR applications.

  • AHRS: Gyro rates: Up to 300 degrees/second any axis Accelerometer: G force measurement up to 16G Low drift, high immunity to vibration
  • Magnetometer: In flight calibration for 3D deviation compensation External SP-6 can be used in case internal SP-6 is not suitable due to mounting location restrictions

Features

What information can be displayed on the EFIS?

  • Magnetic Heading
  • Wind speed and direction vector
  • Attitude
  • Slip and skid
  • G-Force

Specifications

Size: Approx 3.5” x 3.5”

Weight: 175g with connector

Power consumption: 50mA / 120mA (heater on)

Degrees per second: 300 deg/sec typical

Accelerometer: G force up to 15G

Documents

  •   SP9 (PDF)
