Overview

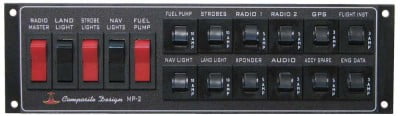

| The Composite Design Mini Power Panel was revised March 2011. This is the first change to this product in 17 years. Changes were made to compliment modern avionics and instrumentation. |
Specifications
- Main Panel – 2.375”H x 8.375”W x 6.50”D
- Side Panel – 2.375”H x 2.50”W
- Weight: approx. 2.25 pounds
- Panel Specifications:
Capacity:17.5V maximum
Main Buss: 55A continuous
Radio Buss: 15A continuous - Switches:
Master
Alternator Field (on Side Panel)
Landing Light
Strobe Lights
Nav Lights
Fuel Pump
Radio Master buss control - Circuit Breakers – Main Buss:
Landing Light
Strobes
Nav Lights
Fuel Pump
Accy Spare
Flight Inst
Engine Data - Circuit Breakers – Radio Buss:
Radio 1
Radio 2
Transponder
GPS
Audio - Circuit Breaker – Side Panel: 30A Alternator Output
