PARKER TYPE AIRCRAFT TUBE BEADING TOOL
Categorías: HERRAMIENTAS, Tubing Tools
Part# 12-01049
684.64$ + IVA
Overview

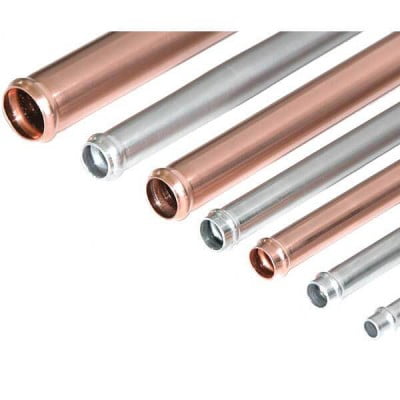

| The Parker Beading Tool has been the number one choice of aircraft mechanics for making clamping beads in metal tubes. To this day, no other tool even comes close to matching its quality. So by special arrangement, the manufacturer tooled up to recreate this classic tool in every detail. In the process they have added a few enhancements of their own, such as ground, hardened, and polished surfaces for mar-free beads in aluminum, copper, brass, and mild steel tubes ranging from 1/4″ to 1″ diameter. Meets MILSPEC MS33660D and SAE AS5131 standards. |
Beading Specifications
| TUBE SIZE | NOMINAL DIAMETER |
MS3360D & SAE Type A Bead Size |
SAE Type B Bead Size |
Beading Die | Roller Size |
|---|---|---|---|---|---|
| 04 | .250″ | .031″ | .023″ – .033″ | #4 | Small |
| 06 | .375″ | .035″ | .025″ – .035″ | #6 | Medium |
| 08 | .500″ | .038″ | .028″ – .038″ | #8 | Medium |
| 10 | .625″ | .038″ | .028″ – .038″ | #10 | Medium |
| 12 | .750″ | .038″ | .030″ – .040″ | #12 | Large |
| 16 | 1.000″ | .062″ | .047″ – .059″ | #16 | Large |
Kit Contents
| OEM Part Number | Description | Quantity |
|---|---|---|
| 12-342-7-2 | Outside Rollers and Frame Assembly (Small) | 1 |
| 12-342-16 | #4 Beading Die (1/4″) | 1 |
| 12-342-7-3 | Outside Rollers and Frame Assembly (Medium) | 1 |
| 12-342-20-6 | #6 Beading Die (3/8″) | 1 |
| 12-342-20-8 | #8 Beading Die (1/2″) | 1 |
| 12-342-20-10 | #10 Beading Die (5/8″) | 1 |
| 12-342-7-4 | Outside Rollers and Frame Assembly (Large) | 1 |
| 12-342-20-12 | #12 Beading Die (3/4″) | 1 |
| 12-342-20-16 | #16 Beading Die (1″) | 1 |
| 12-342-24 | Tube Holder and Rubber Block Assembly | 1 |
| 12-342-17 | Bushing | 1 |
| 4-444-2 | Tool Box | 1 |
