Overview
| ANTENNA/VHF communications, whip type, magnetic base, 118-137 MHz, includes: 12′ cable with attached BNC Connector.

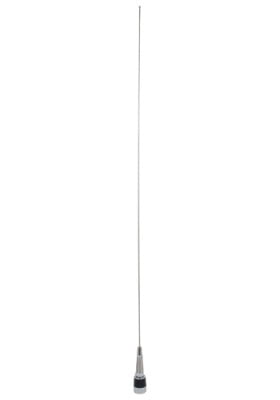

Antenna with magnetic base; 12′ cable with “BNC” connector attached. The AV-7 is a high performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band is required. Heavy duty constructed with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel. Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a magnetic base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz. |
Specifications
- Application: Ground Vehicular VHF COM Communications
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 1.5 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Antenna/Base Interface Connection: NMO
- Base Mount Connector: BNC Male
- Max Height: 45”
- RF Power Capacity: 150 Watts
