RAMI AV-520 VOR/LOC/GS ANTENNA

Categorías: ,

Part# 11-10840

Overview

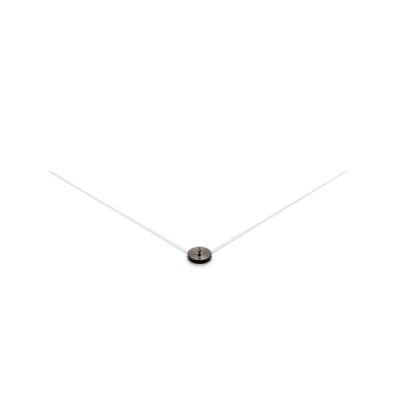

The AV-520 FAA/TSO is a “V” style VOR/LOC/GS antenna utilizing detachable painted stainless steel elements and internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 159C.

Frequency: 108–118 / MHz 329-335 MHz

Specifications

  • Application: VOR/LOC/GS Receive Only
  • Frequency: 108–118 MHz
  • 329-335 MHz
  • Impedance: 50 Ohms Nominal
  • Polarization: Horizontal
  • Pattern: Omni-Directional
  • Connector: “BNC” Female
  • Weight: 0.50 lbs. Maximum
  • FAA TSO: C34e, C36e, C40c
