Overview

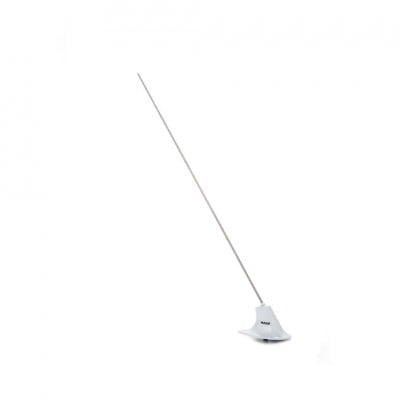

| The AV-530 is designed for broadband communications. The antenna has a die-cast aluminum base and a tapered stainless steel whip for less drag at higher airspeeds. It is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 1.65 lb @ 250 mph. |
Specifications
- Application: Airborne Communications”
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.5 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type “BNC” Female
- Max Weight: 0.5 lb
- Max Height: 24-1/2″
- RF Power Capacity: 25 Watts
