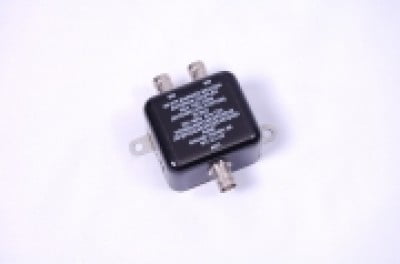

RAMI AV-575 ANTENNA DIPLEXER/SPLITTER

Categorías: , ,

Part# 11-10843

Overview

The AV-575 FAA/TSO antenna is a marker beacon antenna splitter allowing two receivers to share the same antenna. It is a direct replacement for the CI 509

Frequency: 75 MHz

Specifications

  • Application: Marker Beacon
  • Frequency: 75 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5:1 Maximum
  • Insertion Loss: 3.5 dB Maximum
  • Isolation: 20 dB Minimum
  • Connector: “BNC” Female
  • Weight: 0.20 lbs
  • RF Power Capacity: Receive Only
  • FAA TSO: C35d
  • Color: Gloss Black
