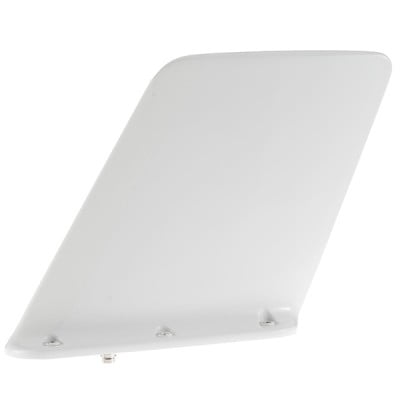

RAMI AV-701 ELT ANTENNA

Categorías: , ,

Part# 11-1652

Overview

This antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It is a passive single port three frequency aircraft blade antenna, designed for high speed aircraft. The circuit Board Housing is made from Polycarbonate.

Specifications

Application

  • Airborne ELT

Frequency

  • 121.5, 243 & 406 MHz

Impedance

  • 50 Ohms Nominal

VSWR

  • 2.0:1 Max at 121.5 MHz
  • 2.0:1 Max at 243 MHz
  • 1.5:1 Max. at 406 MHz

Polarization

  • Vertical

Pattern

  • Omni-Directional

Connector

  • “BNC” Female

Max Height

  • 7.868″

RF Power Capacity

  • 10 Watts CW

FAA TSO

  • C126b
