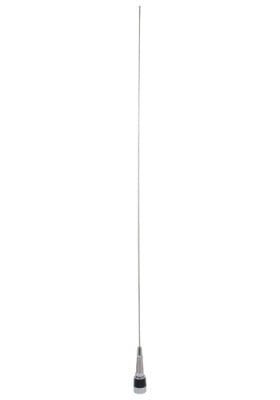

RAMI AV-7F FIXED MOUNT 5/8 WAVE VEHICULAR COM ANTENNA
Part# 11-14035
Overview
| ANTENNA/VHF communications, fixed Mount, 118-137 MHz, spring loaded base, includes: 17′ cable with unattached BNC Connector.
Antenna with fixed mount base; 17′ cable with “BNC” connector not attached. The AV-7 is a high performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band is required. Heavy duty constructed with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel. Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a fixed “NMO” base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz. |
Specifications
- Application: Ground Vehicular VHF COM Communications
- Frequency: 118 to 137 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 1.5 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Antenna/Base Interface Connection: NMO
- Base Mount Connector: BNC Male
- Max Height: 45″
- RF Power Capacity: 150 Watts
