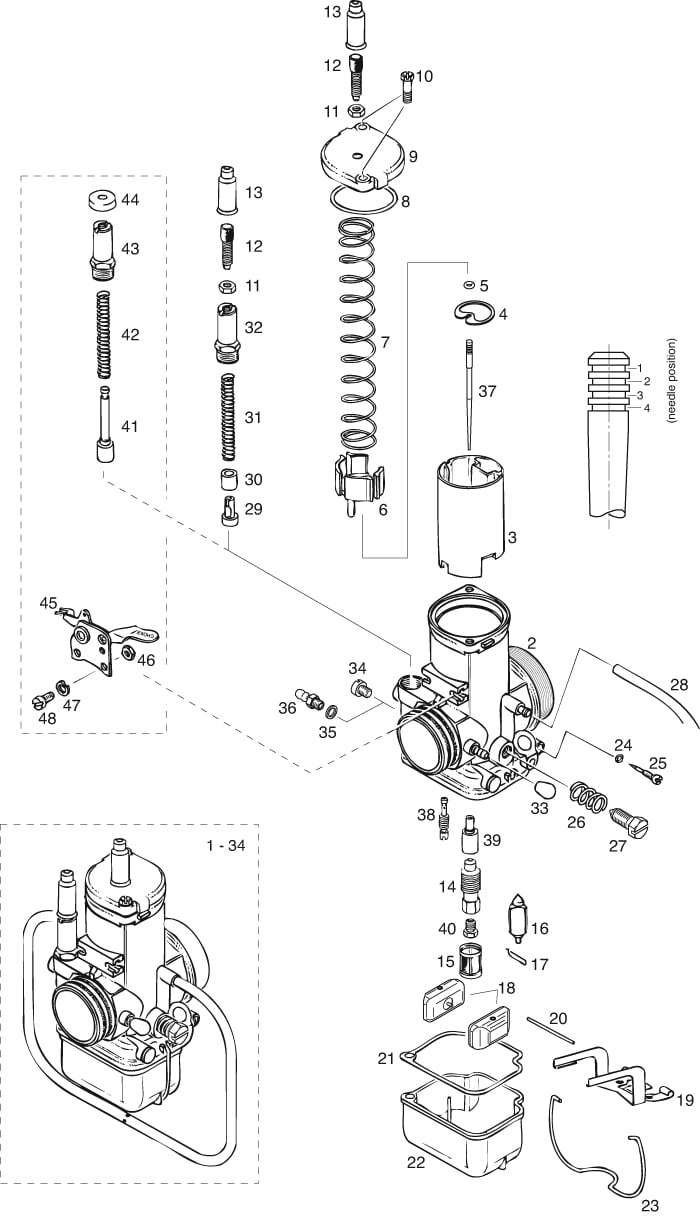

ROTAX 503 | 582 UL 99/17 BING DOUBLE-FLOAT CARBURETOR 36 MM, MODEL 96

• a   base carburetor for air cooled engines with bowden cable choke.
  NOTICE carburetor without calibration.
  from engine S/N
  503 UL: 4,795.201
• b   NOTICE carburetor without calibration.
  from engine S/N
  582 UL mod. 90: 4,656.088
  582 UL mod. 99: starting with serial production
• c   carburetor housing, not available as spare part, use carburetor assy.
• d   jet-needle, see carburetor calibration sheet
• e   idle-jet, see carburetor calibration sheet
• f    needle-jet, see carburetor calibration sheet
• g   main-jet, see carburetor calibration sheet
• h   only necessary on high altitude compensation kit (not available anymore)

Explanations of symbols and statements in part number charts:

• N = Newly introduced part number
• s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
• AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
• n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
