ROTAX 914 IM-574 2-1/4 EGT 4 READING 600-1800 ºF KIT
Categorías: Instrumentos y Sondas, ROTAX ACCESSORIES AND SUPPLIES
MFR Model# IM-574 KIT
249.92$ + IVA
Overview
| The IM-574 instruments have been designed especially to measure the EGT in Rotax® engines 914. Includes the IM-580 EGT Connection Box. The IM-574 is available in 57 mm diameter Can be connected four probes. First shows the temperature of one. After of 3 seconds automatically show the other probe temperature, The four LEDs are used to show that probe is reading. The instruments use a pointer thats turns 240º, witch gives them great resolution. Their display areas are divided into red, green and yellow zones in line with the ROTAX limits. Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V. |
Specifications
- Case: Plastic
- Weight: 200g
- Suitable for: Rotax 914 With Type “K” sender
- Power Supply: 10.30VDC
- Power Current: 0.1 Amp. Max.
- Scale: 600..1800 ºF
- Subdivision scale: 10ºF
- Max. Deviation: 1%
- Dimensions: See sketch
- Calibration: Calibrated by the manufacturer prior to shipment.
In The Box
- IM-551 EGT Gauge 2-1/4 Inch

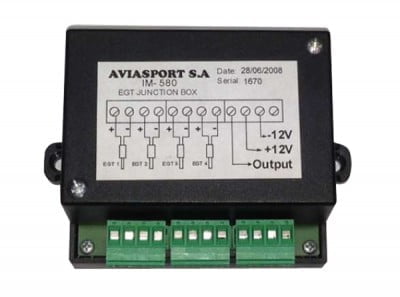

- IM-580 EGT Connection Box
