Name: ROTAX 915iS ENGINE CONTROL UNIT | FUSE BOX | REGULATOR
SKU: 5108
Availability: InStock

Overview

– Items not illustrated

Explanations of symbols and statements in part number charts:

N = Newly introduced part number
s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
CALL = Please call for price, 800-247-9653

Notes

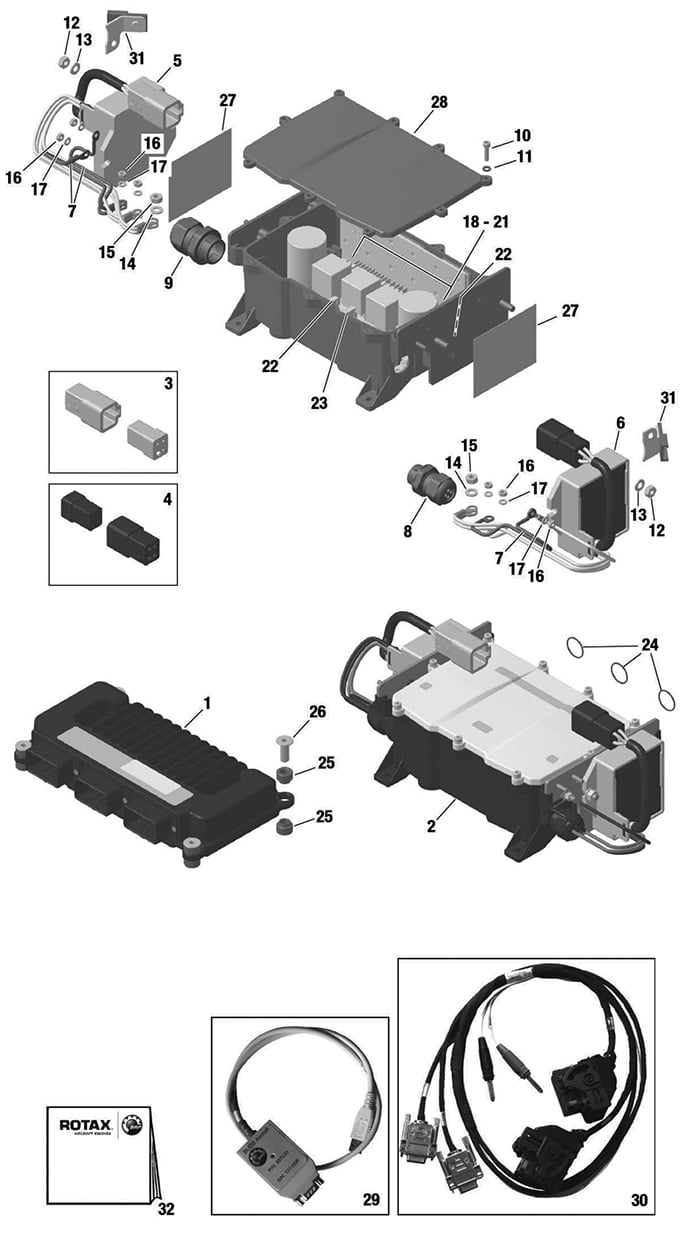

No.	Status	Part No.	Description	912iS	912iS Sport	Price
1	n.a.	881-250	ENGINE CONTROL UNIT ASSEMBLY WRAPPED	1a		*
1	s.v.	881-251	ENGINE CONTROL UNIT ASSEMBLY WRAPPED	1b		*
5		864-395	REGULATOR B CONNECTOR BLACK	1	1	*
6		864-392	REGULATOR A CONNECTOR BLACK	1	1	*
24		931-110	SEALING RING	3	3	*
25		201-460	RUBBER SLEEVE	8	8	*
26		947-540	SPACER	4	4	*
27		282-870	HEAT TRANSFER PAD	2	2	*
30		201-690	COVER	1	1	*
