RUGGED VGA RECORDING VIDEO BORESCOPE SYSTEM

Overview

Features

• Super-clear viewing on 7 in. (178mm) diagonal LCD with high-definition 800 x 480 pixel resolution
• 1m (39 in.) long, 5.5mm (0.22 in.) diameter soft metal probe with 640 x 480 pixel (VGA) resolution camera
• Camera’s six LEDs—four facing forward and two at an angle—provide glare-free lighting in any environment
• Light boost, anti-reflection and 90° frame rotation buttons on probe handle maximize visibility of any inspection target
• Probe and stainless steel camera head are IP67 water, oil and dust-proof. Console is IP57 water, oil and dust-proof as well as drop-proof from height of 1m (39 in.)

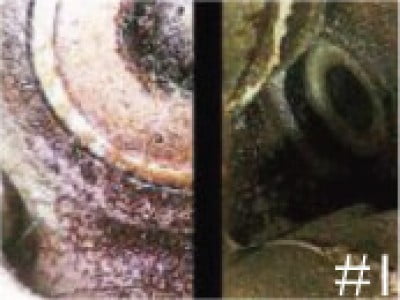

• LCD can show side-by-side front and side views from optional split mirror probe tip attachment (requires purchase of optional VGA Resolution Articulating Probe and split mirror)
• Records VGA resolution video clips (with voice annotation) and still images using familiar menu-driven user interface. Saved video and photo files incorporate real-time brightness and zoom adjustments made prior to recording or “on the fly” to optimize target clarity and detail
• Easy-to-navigate album-style (3 x 3 grid) display of all stored media files
• Different areas of interest on saved photos can be selected for extreme close-up viewing
• Field of view can be enlarged up to 5X, mirrored horizontally, or rotated 90°, 180° or 270°.
• Features can be applied alone or together to make targets easier to inspect
• and serial numbers easier to read.
• 4GB SD memory card
• Analog video out/headphone jack
• USB cable for uploading media on SD card to PC without ejecting card
• 110° mirrored probe viewing tip
• Adjustable Auto Power Off triggering time
• Choice of 27 menu languages
• Custom airtight hard plastic carrying case
• Hand strap and tripod mount
• Powered by rechargeable Lithium-polymer battery

Specifications

• Console Display Size, Type: 7 in. (178mm) diagonal TFT color LCD
• Console Display Resolution: 800 x 480 pixels
• Console Ingress Protection: To water, oil & dust per IP55 standard
• Console Impact Resistance: Drop from height of 1m (39 in.)
• Console Recording Resolution: 640 x 480 pixels (VGA)
• Video File Format/Photo File Format: .avi/.jpg
• Video Zoom Options: 1.5x 2.0x, 5.0x
• Frame Rotation Options: 90°, 180°, 270°
• Interfaces: Analog audio/video & USB 2.0 jacks
• Analog Video Out Formats: NTSC and PAL
• Video Frame Rate: 30 frames per second (fps)
• Compression Format: Compatible with MPEG4
• Recording Medium: Standard-size SD card of up to 32GB capacity (4GB card included)
• Capacity of Included 4GB SD Card: Three hours of VGA resolution video consuming an averageof 26 Mbytes/minute
• Menu Languages: English, French, German, Italian, Spanish, Portuguese, Japanese, TraditionalChinese, Simplified Chinese, Danish, Dutch, Polish, Russian, Bulgarian,Turkish, Swedish, Finnish, Norwegian, Estonian, Lithuanian, Latvian,Hungarian, Czech, Slovak, Slovenian, Romanian, Greek
• System Operating Temperature: 14° to 140°F (-10° to 60°C)
• System Storage Temperature: -4° to 176°F (-20° to 80°C)
• Dimensions of Console: 9.45 x 6.06 x 1.85 in. (240 x 154 x 47mm)
• Weight of Console: 2.6 lb. (1.18kg)
• Power Source: Rechargeable Lithium-polymer battery
• Battery Life (typical): 6 hours operation

PROBE/CAMERA HEAD

• Probe Length, Type, Diameter: 1m (39 in.), soft metal, 5.5mm (0.22 in.)
• Diameter of Camera Head with Thread Protector Installed: 6mm (0.23 in.)
• Probe Handle Controls: Light boost, anti-reflection, 90° image rotation
• Probe/Camera Head Ingress Protection:To water, oil & dust per IP67 standard
• Camera Resolution: 640 x 480 pixels (VGA)
• Camera Depth of Field: 0.25 to 12 in. (6.4 to 300mm)
• Camera Field of View: 60°
• Camera Lighting: Six LEDs—four forward-facing, two at an angle

Documents

•   Model 2300QC Twin Pac Product Specifications
•   Lithium Ion Rechargeable Battery Cell SDS

In The Box

• Console, VGA Resolution Probe,
• 110° Mirror, 4GB SD Card, USB
• Cable, AC Adaptor, Hard Case,
• Hand Strap, User’s Manual,
• 1 Year Limited Warranty
