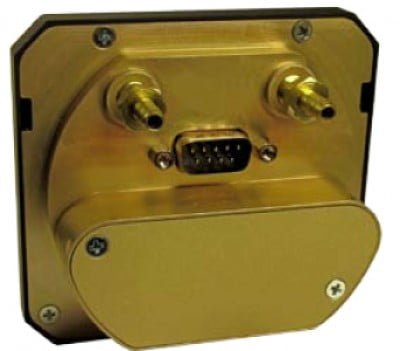

SANDIA SAI 340 QUATTRO PLUS THE 5-IN-1 INSTRUMENT
Part# 11-12817
Overview
 Five-In-One Standby Instrument The SAI-340 Quattro Plus is a five-in-one attitude, airspeed, altitude, slip indicator that includes Instantaneous Vertical Speed (I)VSI. With smooth, high-quality graphics and an easy to read EFIS presentation, the Quattro Plus makes a great addition to a traditional six pack panel. This instrument is a cost-effective way to replace steam-gauge standby instruments in retrofit EFIS-equipped aircraft.
Additionally, the Quattro Plus has a built-in battery which provides up to two hours of stand-alone operation if needed—thus ensuring an added level of redundancy. The MFD fits directly into a standard round 3-inch instrument hole with no panel modification, making it a near drop-in installation. |
Features
- TSO’d Airspeed, Attitude, Altitude, Slip and (I)VIS
- Full Solid State Reliability
- Integral Backup Battery
- Air-Transport Quality Graphics
- Standard 3” Instrument Hole Mounting
Specifications
|
Electrical:
|
||
|
Input Voltage
|
10-32Vdc | |
|
Current
|
2A Max | |
|
Mechanical:
|
||
|
Dimensions
|
3.52” x 3.25” x 1.4” | |
|
Weight
|
0.51 lbs. | |
|
Environmental:
|
||
|
Temperature
|
-20o to +55o C | |
|
Altitude
|
-1500 to +35,000 Ft | |
|
Airspeed
|
20-400 Kts | |
|
Battery:
|
Li-Poly | |
| 30 Minutes Minimum | ||
| 2 Hours Nominal | ||
|
Certification (pending):
|
TSO-C2d (Type B) | |
| TSO-C3e | ||
| TSO-C4c | ||
| TSO-C10b (Type I) | ||
| TSO-C113a | ||
| TSO-C201(A5 HX T7) | ||
| RTCA DO-347 | ||
| DO 178C (Level C) | ||
| DO 160G |
Documents
- TSO Approval (PDF)
- Policy Statement (PDF)
- Pilot’s Guide (PDF)
- Install Manual (PDF)
