SKYOTË
Categorías: KITS AND PLANS, Skyote
Overview

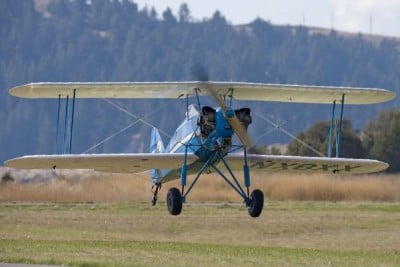

| The Skyotë was designed to have the superb control response and the high structural strength of the Bucker Jungmeister while maintaining the slow flight and short field capabilities of a Rose Parakeet, The Skyotë will take off as quickly as a Super Cub and will fly, power on, down to about 33knots (38mph). Rate of climb with a Continental C-90 engine is 1,500 ft./min. with a ceiling of 16,500 ft. |
Builders Forum
Specifications
- Empty Weight 595 lbs
- Gross Weight 895 lbs
- Engine Continental C-90 (90 HP)
- Power Loading 9.9 lbs/.HP
- Wing Loading 7.28 lbs/HP
- Fuel 13 GAL
- Stressed Per FAA Part 23 AEROBATIC
- Rudder Area 3.28 sq.ft.
- Fin Area 2.1 sq.ft.
- Stabilizer Area 6.95 sq.ft.
- Elevator Area 6.70 sq.ft.
- Stagger 19″
- Gap 40″
- Aileron Area 3.55 sq.ft. each
- Never Exceed Velocity 137 knots
- Maneuvering Speed 93 knots
- Structural Cruise Speed 97 knots
- Stalling Speed 38 knots
- Rate of Climb 1,500 ft./min.
- Service Ceiling 16,500 ft.
