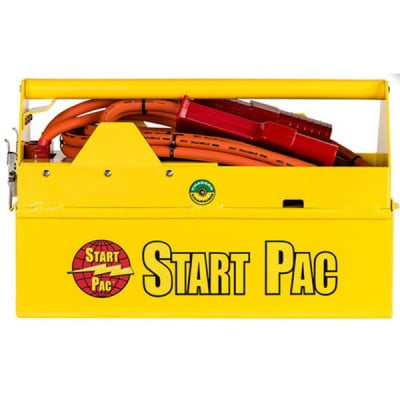

START PAC® PORTABLE STARTING UNIT – 26V 2326QC
Part# 11-17715
Overview
| All In One air portable/carry-on START PAC® with built in chargers, power plug and cables.
This 26 Volt unit is designed for voltage sensitive aircraft that cannotaccept a true 28V external starter. This Start Pac will provide a faster and cooler engine start than most ship’s aircraft batteries, thus extending turbine life which helps to lower operating costs. The 2326QC has dual redundant chargers with a total of 7 amps output with a recharge time of approximately 2-4 hours after having been depleted from multiple engine starts. Certain aircraft will allow the ship’s generator to back charge a GPU. In this manner, Start Pac® can be recharged in the field without an AC source indefinitely. Note: When storing the Start Pac® for more than 30 days, remove the battery box from the charging unit and store separately. |
Specifications
- 26 AMP hours @ 10 Hour Rate
- 2300 AMPS Peak Current
- Available with separate trolley
- L 19.2 x W 7.5 x H 11.5 / L 48.768cm x W 19.05cm x H 29.21cm
- 69 lbs./31 kg Complete weight with built in charger and aircraft cable
- Not to be used as an aircraft battery charger.
Benefits
