TCW 3AH INTEGRATED BACK UP BATTERY SYSTEM – CERTIFIED
Part# 11-15479
Overview

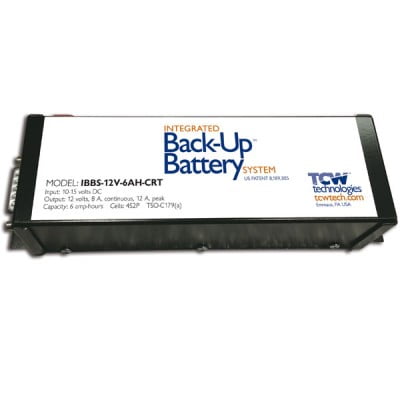

| The Integrated Back-up Battery System provides back-up power to critical electronics such as EFIS, GPS, Navigators, Radios, Autopilots and Engine monitors. The IBBS is an fully automatic system that combines a Li-FE-PO4 battery pack, a smart charger and switching logic in one convenient package. The IBBS provides an engineered solution to enable an endurance bus for critical electrical loads found in today’s aircraft. It simplifies wiring and installation of a source of back-up power by integrating all the key elements into a single enclosure.
The IBBS system is an FAA approved article produced exclusively by TCW Technologies, LLC under TSO-C179(a). Compliant with DO-311 & DO-160 |
Features
- 3 amp-hr model
- Safe, reliable Li-Fe-PO4 chemistry
- Fully automatic operation.
- High performance integral charger
- Critical backup power
- Designed and Assembled in USA
- FAA approved article
- TSO-C179(a)
- DO-311, DO-160(f)
- US Patent 8,189,305
Specifications
Input Voltage: 13.5 – 15 volts DC for battery charging.
Input Voltage:Transition Voltage: 10.5 – 11.5 volts
Input Current: 2.5 amps max continuous on main input for charging 0.8 amps max for battery heater at low temps
Pass-thru Current: 5 amps continuous, 10 amps peak (30 seconds)
Output Voltage: 10 – 14 volts DC during back-up operation
Output Current: 5 amps continuous, 10 amps peak transient load (30 second duration max)
Battery: Internal sealed Li-Fe-PO4, nominal 12.8 volts
Charger: Integral high performance fast charger with cell balancing and thermal monitoring
Surge Protection: 34 volt active clamp 1500w 10/1000uS waveform
Wiring: 15 pin male D-sub on product.
Enclosure: Aluminum 7.7″ x 2.3″ x 1.6″
Weight: 18 oz.
Temperature range: Operating – 10 C° to 60 C°; Charging – 40 C° to 40 C°
Connector: Standard density 15 pin D-sub,male on product
