TR MOLD RELEASE SEALER & WAXES
Categorías: AGENTES DE LIBERACIÓN DE MOLDE, MATERIALES COMPUESTOS
Overview

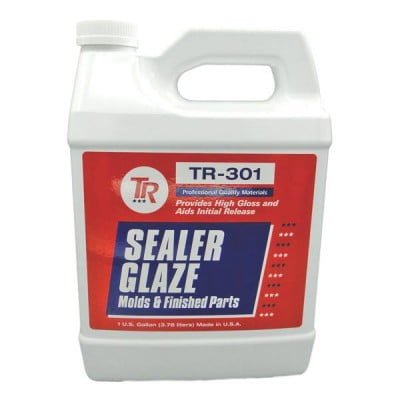

On new or reconditioned tooling, suggest use of the sealer glaze TR-301 prior to waxing for added release, gloss and mold life. Apply wax with sponge applicator in thin even circular motion to the mold surface. Allow to haze dry (approx. 5-10 min) and polish wipe to gloss finish. For new or reconditioned molds apply a minimum of 6 coats of paste wax, waiting approx. 30-60 minutes between applications for the wax to harden after the polish wipe. Best results obtained if after application mold is allowed to stand overnight and a subsequent final coat of wax release applied following day prior to gel coating. Follow with a coat of wax for the first 2-3 parts released. Then determine how many parts can be effectively produced before re-waxing is required. This will vary depending on molding condition, configuration, resin, mold cycles, effective cure of production gel coat and other factors. Uses:
NOTE: Check suitability when heat curing or higher temperature molding above 185°F (85°C) for the TR-102 & above 210°F (85°C) for the TR-104. |
Features

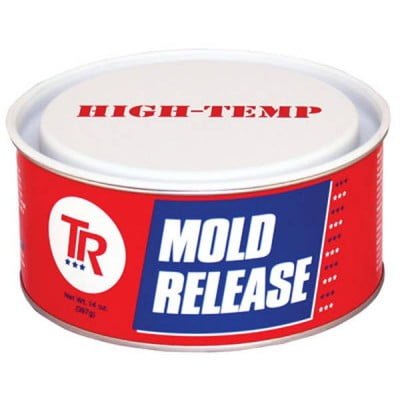

TR-102:
- High carnauba wax content polishes to high gloss without streaking
- Good heat and chemical resistance properties
- Easy application and wipe off characteristics
- Reduced wax build up and styrene accumulation
TR-104:
- Ease of application and removal. May be allowed to stand at length and still polish wipe easily
- Provides hard film with superior heat and chemical properties
- Polishes to high gloss without streaking
- Reduced wax build-up and styrene accumulation
Physical Properties
- Dry Time: 5-10 Minutes@ 72°F. Will Vary Depending On Working Temperature
- Wax Melting Or Softening Point: TR-102: 185°F (85°C) / TR-104: 185°F- 210°F (85°C- 99°C)
- Penetration Hardness: 1 At 25°C (Carnauba Wax)
- Color: TR-102: Off white / TR-104: Light Blue Tint (Color Coded For Identification) / TR-301: Colour colorless (in liquid state beige) consumption approx. 15 g / cm² per application solvent Water / petroleum distillate
