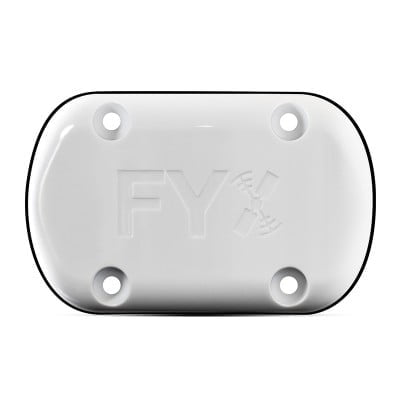

UAVIONIX SKYFYX-EXT GPS ALL-IN-ONE RECEIVER AND ANTENNA
Part# 11-15215
Overview
| SkyFYX combines a high precision WAAS GNSS sensor with an integrated RAIM processor. Resilient against jamming, spoofing and GPS range errors—SkyFYX provides reliable navigation in challenging environments. SkyFYX is the most affordable ADS-B rule-compliant position source companion for the echoUAT ADS-B transceiver.
The SkyFYX meets the performance requirements of 14 CFR 91.227. For use in Exper imental and LSA aircraft. |
Features
- Performs in low sensitivity or high GPS multipath areas.
- Directly connects to EchoUAT transceiver.
- Connects to popular EFIS from Dynon, GRT and MGL Avionics.
- Integrated RAIM processor for Security and Integrity Protection.
- Advanced jamming and spoofing detection.
- Uses SBAS corrections and health messages to detect and correct satellite range errors.
- Satellite pseudo-range step errors detected and excluded.
- SBAS fast and long term corrections applied.
- Patents pending.
