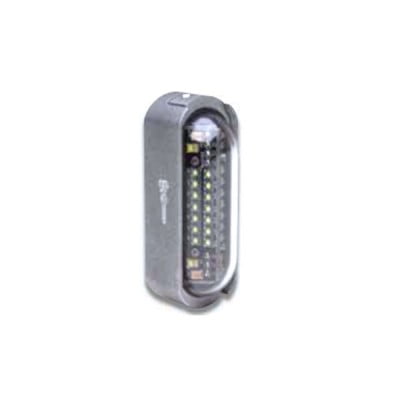

WHELEN LED ANTI-COLLISION / TAIL POSITION INTEGRATED GROUND RECOGNITION LIGHT
Categorías: ELECTRICAL, WAT (formerly Whelen)
Part# 11-16905
Overview
| Model 90482 is a compact and feature added version of the 90354 Tail assembly. AFT Position light with White Anti-Collision light combination includes a Red flashing portion used as a Ground Recognition light. Red Ground Recognition and White Anti-Collision lighting can not be activated simultaneously. This light intended for use as a system with 71170 series lightheads and Model 7123403 Flasher/Current source for complete aircraft coverage. Item does not include interconnect cable for Flasher/Current source. |
Specifications
- Weight: 0.35 lbs (159 gm)
- Dimensions: Exposed Height: 3.60” (91mm) x 1.25” (32mm) x 1.78” (45mm)
- Current Draw: Current (7123403): ACL: 0.53A Average, 2.5 a Peak/ POS: 0.25a/Ground Rec. 0.15a
- Available LED Color: Aviation White
- Lens: Clear Polycarbonate
- Approvals: FAA TSO C96a/TSO-C30c Type III
