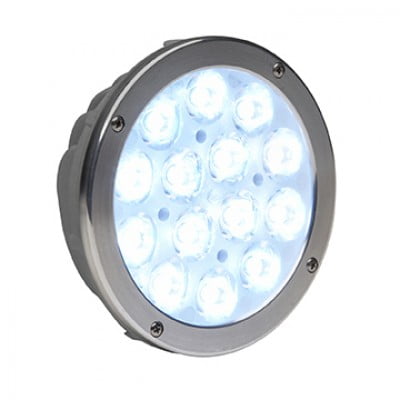

WHELEN LED LANDING LIGHT – PAR 36 MODEL 71141 SERIES

SKU: N/D Categorías: ,

873.18$917.73$ + IVA

Overview

Model 71141 Series is a self-contained all LED Landing Light Assembly. The design is intended to provide a solution to the needs for a Taxi & Landing Light on a wide variety of aircraft. All current source and electronic circuitry is contained within the housing. Unit is available in several mounting configurations to retrofit existing typical PAR-36 lighting. Unit is designed to be mounted internally behind existing lens. Item ships with flying leads. Contact your OEM for installation eligibility on your aircraft.

Model #
Description
Part No.
Price
7114110
LED Landing/Taxing
Light Internal Mount (14Volt)
11-06185
$588.00
7114120
LED Landing/Taxing
Light Internal Mount (28Volt)
11-06186
$618.00

Specifications

  • Power Consumption: 1.5 Amps @ 28 VDC
  • Weight: 1.0 Lbs (454gm)
  • Exposed Diameter: 4.46″ (113mm), Overall
  • Depth: 1.90″ (48mm)
  • Lens: Clear Polycarbonate
    • VOLTAGE:

      14 Volt, 28 Volt
