WHELEN MODEL 71081 SERIES LED BEACON 28 VOLT (FOR ROTORCRAFT)
Categorías: ELECTRICAL, WAT (formerly Whelen)
Part# 11-06174
Overview

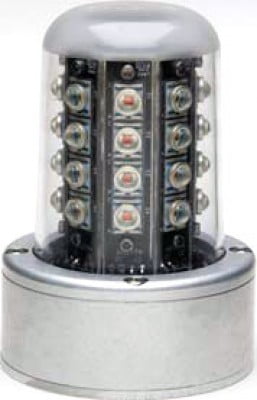

| MODEL 71081 SERIES LED BEACON (For Rotorcraft) Model 71081 Series LED beacons are FAA TSO’d self-contained LED anti-collision lights (Ref. Class I – 150 effective candlepower). They are designed to replace existing beacons utilizing a 2-1/2″ diameter footprint. They can also replace remote mounted strobe lights (ref. Whelen A470 series) allowing for removal of the strobe power supply. Internal mounting plate provided with choice of mounting holes to retrofit most existing mounting patterns. |
Specifications
- Power Consumption: 28VDC Nominal
- LED Colors: Aviation Red
- Lens: Aviation Clear, Polycarbonate
- Weight: 0.6 Lbs (272gm)
- Exposed Height: 3.64″ (92mm)
- Exposed Width: 2.6″ (66mm)
- Exposed Length: 4.61″ (117mm
