WHELEN MODEL 90350 SERIES SELF-CONTAINED LED GROUND RECOGNITION LIGHT ASSEMBLY
Categorías: ELECTRICAL, WAT (formerly Whelen)
Part# 11-06172
Overview

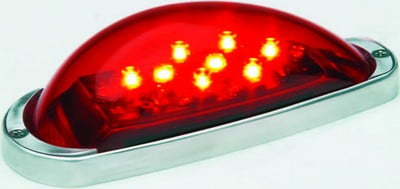

| MODEL 90350 SERIES SELF-CONTAINED LED GROUND RECOGNITION LIGHT ASSEMBLY Model 90350 Series is a self-contained all LED Ground Recognition light assembly. The design is intended to provide a solution to the needs for ground recognition lighting on a wide variety of aircraft. All current source and flasher circuitry is contained within the base plate. Unit is flush mounted to aircraft surface eliminating the need for large cutouts in the aircraft structure. Item ships with flying leads. |
Specifications
- Power Consumption: 0.28 Amps Avg. @ 28 VDC
- LED Colors: Aviation Red
- Lens: Aviation Red, Polycarbonate
- Weight: 0.2 Lbs (91gm)
- Exposed Height: 1.48″ (38mm)
- Exposed Width: 1.64″ (42mm)
- Exposed Length: 4.61″ (117mm)
