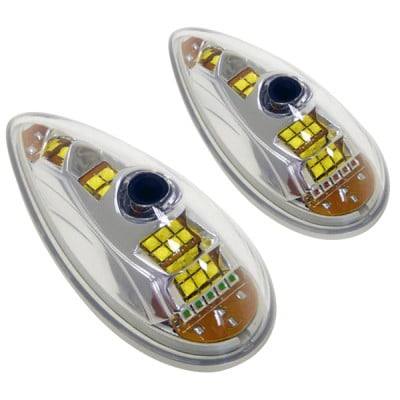

AVEO ULTRA EMBEDDED DAYLITE™ WINGTIP 2-IN-1 LED LIGHTS NAVIGATION / STROBE
Part# 11-15068
Overview
| The Ultra Embedded Daylite™ is only 34 millimeters in height (1.34 inches), but does not sacrifice performance or standards. With exclusive advanced optics and chrome reflector system, unmatched power and led management circuity, and the lowest-drag profile in the industry. The Ultra Embedded Daylite™ gives unmatched power and features, while being lower, narrower, shorter, and lighter than the competition. For Experimental Use Only.  |
Features
- Navigation/Strobe LED Light
- Lower, narrow, and shorter than other industry lights
- Lightweight at 127 grams
- 9-36 volt DC input range
- Unmatched circuit technology
- Limited Warranty – Product must be registered within 30 days of purchase Here
Specifications
- Dimensions (mm): 100.3 mm x 46 mm x 34 mm
- Dimensions (inches): 3.949″ x 1.814″ x 1.34″
- Weight (g): 127 g
- Weight (oz): 4.48 oz
- Operating Voltage Range: 9 – 36 VDC
- Input Current – Nav – green: 0.22A @28V, 0.44A @14V, 0.73A @9V
- Input Current – Nav – red: 0.17A @28V, 0.31A @14V, 0.5A @9V
- Input Current – Strobe: 1.25A @28V, 2.1A @14V, 2.4A @9V
- Output Power – Nav – green: 5.6 W
- Output Power – Nav – red: 3.3 W
- Output Power – Strobe: 21.4 W (@9-18 VDC)
- 32.1 W (@18-36 VDC)
- Repetition Rate of Strobe: 50 cycles per minute
- Ambient Temperature: from -55°C to +85°C
- from -67°F to +185°F
- Overheat Protection: YES (+85°C)
- Recommended size of mounting screw: M4
- Reverse Polarity Protection: YES
- Transient Voltage: 80V at 2sec max, both polarities
- Under-Voltage Protection (lockout): YES (9V)
- Over-Voltage Protection (lockout): YES (36V)
- Waterproof, Dust-proof, Shock-proof, Vibration-proof: YES
