Overview
Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde’s proprietary PolyGuard® Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature. Since 1986, Concorde recombinant gas RG® Series AGM-VRLA batteries have been adopted by the majority of military and corporate users worldwide for all types of aircraft.

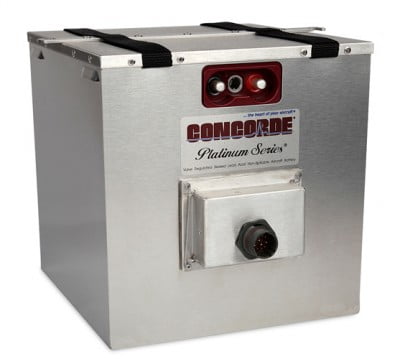

RG-380E/60KSH is a fireproof stainless container with side louvers and stainless cover with fabric lifting straps and hold down bar. **Concorde RG-380E/60KSH assembly as shown in the photo above consists of the RG-380E/60KSH battery and a Heater Control Unit (HCU). HCU types vary in style for use in multiple configurations. |
Specifications
- Primary Aircraft Purpose: Turbine Starting Aircraft Battery
- Voltage: 24v
- Rated Capacity C1 = 1 hr. rate in ampere hours: 48.00
- Max Weight: 98.00 lb / 44.5 kg
Documents
- Battery Warranty
- FAA-PMA Installation Eligibility List (Your aircraft not listed? See Concorde’s web site for an extended list)
- Storage and Boost Charge Recommendations
- Concorde Battery AS9100 Certificate of Registration
- RG Series Batteries
- Lead Acid Batteries
- Dry Charged Batteries
