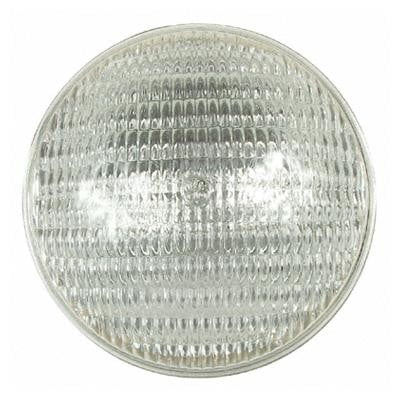

GENERAL ELECTRIC GE Q4629 QUARTZ HALOGEN LAMP

Overview

General Characteristics

• Sealed Beam – PAR Lamp Type
• PAR 64 Bulb
• Screw Terminals Base
• CC-6 Filament
• Halogen Product Technology
• 600 Watts
• 28 Volts
• 100 Hrs. rated life
• Primary Application: Aircraft

Photometric Characteristics

• 55°-10% Beam Spread Horizontal
• 35°-10% Beam Spread Vertical
• 20000 Maximum Beam Candlepower (MBCP)

Dimensions

• 4.8100 inches Maximum Overall Length
• 8.000 inches Bulb Diameter
