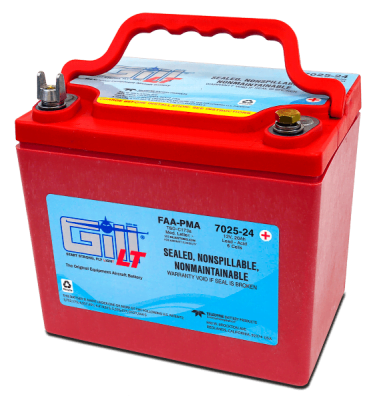

GILL® 7025-24 LT SUPER CAPACITY SEALED LEAD ACID BATTERY

GILL® 7025-24 LT SUPER CAPACITY SEALED LEAD ACID BATTERY

Categorías: ,

Part# 11-16889

Overview

  • The 7025-24 has the highest amp hour capacity available in the 12 volt 25 case size series
  • Factory Sealed, No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt

Super Capacity Gill® 7025-24 is perfect for your 12V small piston powered aircraft needing extra power for navigation, laptops, cell phones and other interconnectivity devices. See application chart link to locate your aircraft and review your battery options.

Battery Type Voltage Amp Hours 30 Minute Capacity Weight Lbs. Battery Diagram PDF
7025-24 12 24.2 33 23.4   Download Full Battery
Specification

Application Chart

Manufacturer Model PMA SUP. #
Aerostar PA-60-600, PA-60-601, PA-60-601P, PA-60-602P, PA-60-700P 64
American Champion 7ACA, 7ECA, 7GCBC 64
Beech 19, 23, 24, 55, 58, 77 11, 64
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A 11, 64
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172 N, F172D, F172E, F172F, F172G, F172 H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340 11, 64
Commander 112, 112TC, 112B, 112TCA 64
Piper (Aerostar 600) PA-60-600, (Aerostar 601) PA-60-601, (Aerostar 601P) PA-60-601P, (Aerostar 602P) PA-60-602P 11, 64
Piper PA-11, PA-36-285, PA-36-300, PA-36-375, PA-38-112, PA-46-350P 11, 64
Piper PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA- 32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112 11, 64
Socata, S.A. GA- 7 64
True Flight AA-1, AA-1A, AA- 1B, AA-1C, AA-5, AA-5A, AA-5B 64

Documents
