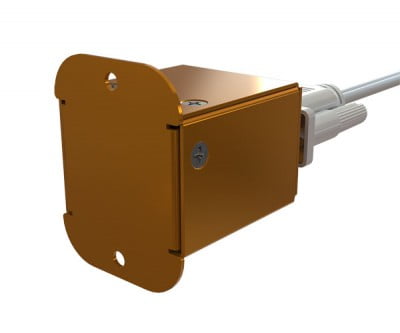

iFDR SINGLE USB 150-201 POWER SUPPLY FOR REMOTE INSTRUMENTS

The iFDR Power 150-201 is remote mounted Dual USB-A power / charging unit designed to mount behind the instrument panel and provide reliable power for a single iPad/iPhone dock or any component with USB charge capabilities. The iFDR Power 150-201 provides 2.1 amps at 5 VDC ± 0.25 (10 watt) for the USB connection. Power input and output is hard wired into the 15-pin connector and can accept 9-48 VDC aircraft power and will convert down to 5 VDC.

The iFDR Power 150-101 is a smart USB charger and features a feedback loop to keep the 2.1 amp current stable at all times. The units are EMI shielded and also feature reverse polarity protection.

Approved for FAA Certified Part 23 Aircraft and Part 27 and 29 Rotorcraft
All iFDR Power 150 USB Power Supplies from Guardian Avionics are approved for installation in certified aircraft and rotorcraft under 14 CFR Part 23, 27 and 29 as “Non-Required Safety Enhancing Equipment” (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Power supplies and mounts may be installed as a minor alteration.   Please refer to this link for the Guardian Avionics NORSEE Letter of Authorization.
