Name: MATCO AXLE CHART
SKU: 29705
Availability: InStock

PN A1 | No. 06-00495 | 1.25 In | AXLE 1 | AL flange mount

PN A1A | No. 06-00496 | 1.25 in | AXLE 1A | AL flange mount

PN A1B | No. 06-00497 | 1.25 in | AXLE 1B | AL flange mount

PN A2 | No. 06-00498 | 1.25 in | AXLE 2 | AL flange mount

PN A3 | No. 06-00499 | 1.25 in | AXLE 3 | AL flange mount

PN A3A | No. 06-00501 | 1.25 in | AXLE 3A | AL flange mount, 5″ Cessna bolt pattern

PN A3C | No. 06-00502 | 1.25 in | AXLE 3C | AL flange mount, 6″ Cessna bolt pattern

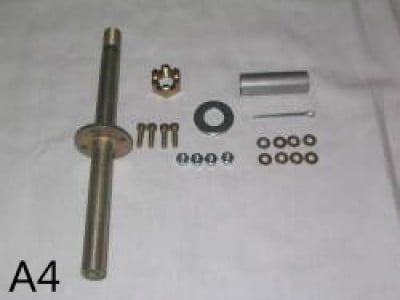

PN A4 | No. 06-16830 | 0.625 in | AXLE 4 | Steel tube

PN A5 | No. 06-00503 | 0.75 in | AXLE 5 | AL flange mount

PN A5G | No. 06-00504 | 20mm in | AXLE 5G | Steel flange mount

PN A6 | No. 06-00505 | 1.5 in | AXLE 6 | AL flange mount

PN A6M | No. 06-00506 | 1.5 in | AXLE 6M | Alternate mount version of A6

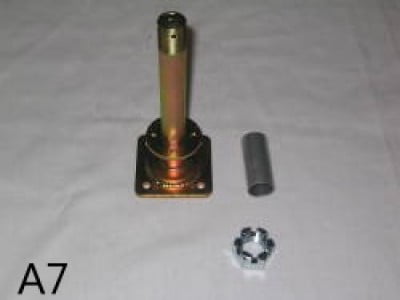

PN A7 | No. 06-00507 | 0.75 in | AXLE 7 | Steel tube mount

PN A8 | No. 06-00508 | 0.75 in | AXLE 8 | Steel tube

PN A13 | No. 06-00509 | 0.625 in | AXLE 13 | Steel tube for fork mount

PN A15 | No. 06-00510 | 1.5 in | AXLE 15 | For W323A Compound W&B

PN A15M | No. 06-00511 | 1.5 in | AXLE 15M | For W323SA Compound W&B

PN A16 | No. 06-00512 | 0.75 in | AXLE 16 | Steel tube for W62 with F602 spacer

PN A17 | No. 06-00513 | 0.75 in | AXLE 17 | Steel tube

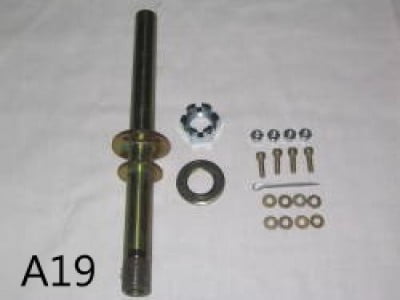

PN A19 | No. 06-00514 | 0.75 in | AXLE 19 | Steel tube

PN A20 | No. 06-00515 | 0.75 in | AXLE 20 | Steel tube with spacers for Zenith 601

MATCO AXLE CHART

Overview
