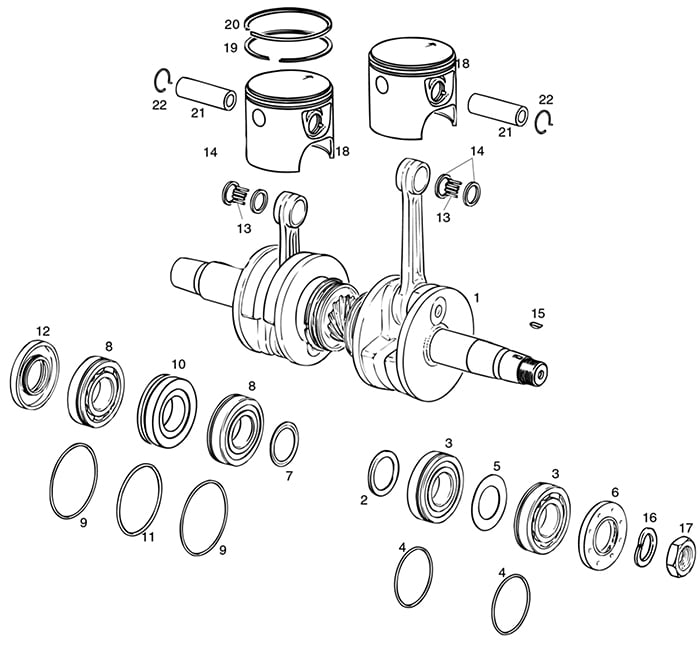

ROTAX 582 UL 99/17 ENGINE CRANKCASE | MAIN BEARINGS | PISTONS PARTS

• a   Piston for monohook circlip configuration, see also SI-2ST-001.
• b   With 2 rings, standard: RED 75.94 mm (2.989 in.), GREEN 75.95 mm (2.990 in.).
• c   With 2 rings, 1st oversize: RED 76.19 mm (2.999 in.), GREEN 76.20 mm (3.000 in.).
• d   With 2 rings, 2nd oversize: RED 76.44 mm (3.0094 in.), GREEN 76.45 mm (3.0098 in.).
• e   Standard size.
• f   1st oversize.
• g   2nd oversize.
• h   In use with piston part no. 888-590, see also SI-2ST-001.
• i    NOTICE – Use only once.

Explanations of symbols and statements in part number charts:

• N = Newly introduced part number
• s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
• AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
• n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
