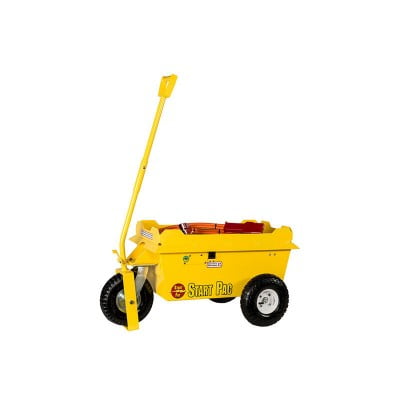

START PAC® GROUND POWER SUPPLY & STARTING UNIT – 24V 3324-1

Batteries:

• 52 Amp Hours at 10 hour rate
• 24 Volt DC – 25.5 Volts at rest
• Sealed cells non- hazardous
• Valve regulated high amperage output lead acid
• 2800 Peak Amps

Power supply / charger:

• 105 or 175 amps DC continous output at 28.5 Volts
• 28 – 28.5 Volt output from 0 – 58 amp load
• Battery recharge time from fully discharged – 1 hour
• AC Input – 220 Voltsonly

Limitations : 250 amps maximum DC load
NOTE- When using more than 105 or 175 continuous amps, the batteries will make up the difference until they become depleted. On most aircraft, a low voltage relay will drop below a preset level. Once the GPU is dropped off, it’s voltage will rise and will be accepted again by the aircraft, then will immediately drop off again. This oscillation can cause damage to aircraft components.

The following dimensions apply to each of the 3300s: 38″x21″x20″ Handle Height 48″.

Features- The GPU is rated at 2800 peak starting amps and a continuous 105 or 175 amps DC output when connected to a 220 Volt AC source. This unit has a large battery capacity (52Ah) that will allow extended usage time when no AC power source is available.

The 3324-1 weighs 200 Lbs. and is pulled by hand or tug. Locking the handle in an upright position sets the GPU brake. Always recharge the GPU until charger green light appears. Once charged, it is not necessary to leave the unit turned on. If a heater is installed, leave unit plugged in.

NOTE-PLEASE USE #12 or LARGER AC EXTENSION CABLE
