TENSION BOLTS NAS6703 & NAS6704

TENSION BOLTS NAS6703 & NAS6704

Categorías: ,

Overview

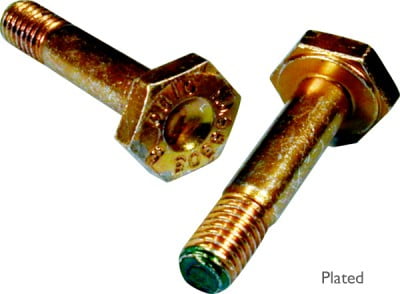

Hex Head, Long Thread NAS6703 & NAS6704

Material – CRES (A286) Per AMS5731, AMS5732, AMS5737 or AMS5853
Finish – Cadmium Per AMS-QQ-P-416 II, Class 2 or Passivate Per AMS2700 (U Code)
Heat Treat – 160-190 KSI Per AMS2759

Specifications

NAS6703

  • A = .376
  • D = .1895
  • H = .110
  • Thread: 10-32 UNJF-3a
  • Tensile: 3620 Lbs. Min
  • Shear: 5380 Lbs. Min

NAS6704

  • A = .439
  • D = .2495
  • H = .125
  • Thread: 1/4-28 UNJF-3a
  • Tensile: 6470 Lbs. Min
  • Shear: 9300 Lbs. Min
