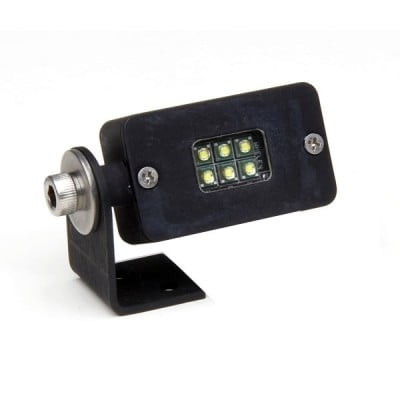

WHELEN 71414 SERIES LED INSPECTION LIGHT – 28V
Categorías: ELECTRICAL, WAT (formerly Whelen)
Part# 11-16938
Overview
| Model 71414 28V is an LED inspection light designed to replace GRIMES A5395-23 on the S76 Helicopter. The product comes standard with a black anodize finish and a clear polycarbonate lense. 71414 also comes with a Bracket and has a hex head locking assembly to hold the light at the desired angle. 71414 produces more (>13) candela than the GRIMES light it replaces,unit comes with 12 flying leads. |
Features
- Replaces Grimes A5395-23
Specifications
- Model # 7141400 01-077414-00 LED Inpection Light (28V)
- Drawing Number: 71414
- Weight: 0.08lbs (36.29gm)
- Length: 2.17(55.12mm)
- Height: 1.19 (30.23mm)
- Width: 0.80 (20.32mm)
- Voltage: 24VDC
- Viewing Angle: Up to 70Deg
