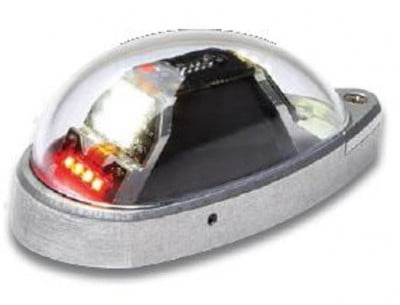

WHELEN ORION™ 650 SERIES LED WINGTIP POSITION / ANTI-COLLISION LIGHT
Categorías: ELECTRICAL, WAT (formerly Whelen)
Overview
Whelen Engineering is proud to introduce the ORION650 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION650 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofit-able to the Whelen legacy strobe products. The ORION650 series is quite simply the brightest form of LED Anti-collision and Position lighting available. ORION™ 650 Position/Anti-Collision Light-head:
|
Specifications
- Drawing Number: 90725
- Weight: .26lbs (118gm)
- Current Draw(12v/28v): 0.30/0.15 Amps Positions, 0.70/0.35 Amps Avg. ACL
- Position LED Colors: Red (left) and Green (right)
- Anti-Collisions LED Color: Aviation White
- Lenses: Clear Hardcoated Polycarbonate
- Dimensions H x W x L: See dimension drawing above.
- 5 Year Warranty
Documents
Drawing
