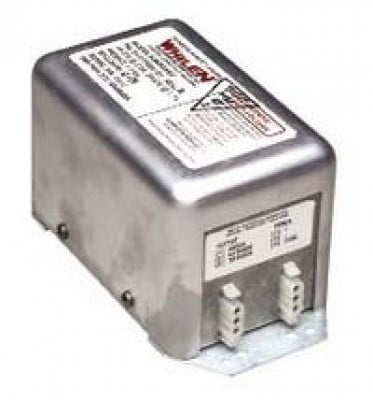

WHELEN POWER SUPPLIES MODEL A490ATSC SERIES
Part# 11-02666
Overview
| A490ATSC series operates one strobe lighthead. Its compact size allows mounting in the wing tip and/or the tail, adjacent to the lighthead. It produces an accumulated 34 joules of power and can be equipped to flash simultaneously with up to 5 other like units by connecting an 18 gauge wire between outlet 3 on the input power connector. This power supply will operate from 10 to 30 VDC. |
 |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Drawing Number: 70062
- Power Consumption: 4.0 amps @ 14 VDC; 2.0 amps @ 28 VDC
- Weight: 1.7 lbs. (771gm)
- Length: 5.0” (127mm)
- Width: 3.12” (79mm)
- Height: 3.06” (78mm)
