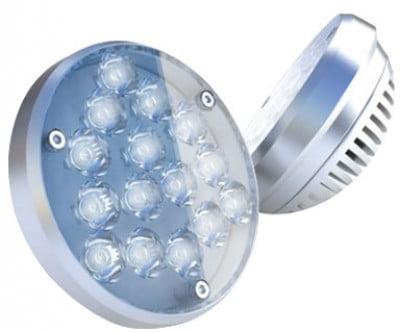

AVEO MAXX ATLAS 15 LED LANDING / TAXI / WIGWAG LIGHT

SKU: N/D Categorías: ,

1,076.68$ + IVA

Overview

AveoEngineering introduces the exclusive next-generation AveoMaxx™ landing/taxi/wigwag light module.

The disc light for external or leading edge insert mounts is here from Aveo. With 90,000 candela, the AveoMaxx Atlas™ outperforms the Brand X led disc lights by from 2x to 5x the brightness. Gone also is the blue tint from HID lights that restrict pilot visibility.

The AveoMaxx™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light.

For Experimental Use Only

Features

  • 3-in-1 System includes Landing, Taxi and WigWag
  • Highly optimized optics including Aveo RockyReflector™ System
  • Aveo PowerOptimizer™ advanced LED power supply and controller
  • 70% lumen maintenance after 60,000 hours
  • Limited 3yr Warranty – Product must be registered within 30 days of purchase Here

Specifications

Technical Information
1. Number of LED: 10
2. Input voltage: +9..+36 VDC
3. Output power [Hi/Low]: 15/7W Taxi, 46/22W Landing, 61W/29W Taxi+Landing
4. Voltage protection: 80V, both polarities
5. Under-voltage lockout: 8.5V , not more
6. Over-voltage lockout: 37V, not less
7. Ambient temperature: -40C..+85C
8. Function description:

  • a. 1×4 LEDs – Taxi, steady light
  • b. 1×6 LEDs – Landing, steady light
  • c. 1×4 + 1×6 – Taxi+Landing
  • d. Synchro Mastrer function, active – low
  • e. Wig-Wag – Taxi LEDs only
  • f. Master/Slave select sequential and simultaneous Wig-Wag mode
  • g. High/Low power select for Landing and Taxi.

9. Beam Pattern:

  • a. 100 Vert 100 Horizont – Landing
  • b. 100 Vert 100 Horizont – Taxi

10. Light Intensity:

  • a. 54.000 cd – Landing Hi
  • b. 29.000 cd – Landing Lo
  • c. 18.000 cd – Taxi Hi
  • d. 10.000 cd – Taxi Lo
  • e. 72.000 cd – Landing + Taxi Hi
  • f. 39.000 cd – Landing + Taxi Hi

11. Color and shade: cool white, 5000K – White
12. Programmable Soft-Start, less than 50mS
13. Overheat protection, temperature dependent decrement intensity
14. Weight: less than 0.8lbs (364 g) with Aveo bracket
15. Useful life: not less than 30.000,0 aircraft flight hours.
16. Dimension: 3.58” Round x 1.78” (D = 91mm, H = 45.3mm).
17. Material:

  • a. Housing/Heatsink: Aluminum Alloy, natural anodizing
  • b. Lens: Clear Polycarbonate

Tech Drawing

Bracket

Documents

    • version:

      With Bracket, Without Bracket
