FLEXIBLE WHITE / GREEN / RED LED LIGHT STRIP GLARE SHIELD LIGHTING AND DIMMER BY SPT
207.57$ – 215.05$ + IVA

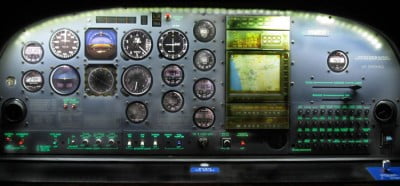

|Superior Panel Technology has developed a brighter, wide-angle LED Light strip with your choice of RED, GREEN, or WHITE for aircraft panel illumination. The 39” LED light strip includes 60 wide-angle LEDs. The LED light strips are adaptable for both 14V and 28V aircraft and can be cut to length as needed (every third LED). When on full power, the LEDs produce a nice flood light that is amazingly bright and produce enough light to read charts.
The LEDs are fully dimmable using the SPT Pulse-Width-Modulation (PWM) dimmer that was specifically designed for the low current draw LEDs. The dimmer allows for a gradual dimming without the brightness steps often found in dimmers not designed for low current draw items. The very compact dimmer is only 1” wide and is VERY easy to wire. There is a + (power in), – (ground) and terminal for power out to the lights! You can choose to have an internal circuit breaking off switch in the dimmer or a dimmer without a circuit breaking off switch (normally only used when a master lighting switch is used to cut power to multiple dimmers. See article in the document section on “Choosing the Correct Dimmer”.
Aircraft Spruce and SPT have worked together to offer a discount on the LED Light Strip and PWM Dimmer when purchased as a package.
The SPT LED Light Strips also pass the FAA burn test 14CFR 23.853 (a) and a copy of the burn test results is included with the light strips.
SPT OFFERS AN INDUSTRY-LEADING 5 YEAR WARRANTY ON THEIR PWM DIMMERS!
- LED color:
White, Green, Red
With Dimmer, Without Dimmer
Switch, No Switch
