iFDR DUAL USB 250-101 POWER SUPPLY FOR INSTRUMENT PANEL
SKU: N/D
Categorías: ELECTRICAL, POWER-CONVERTERS
Overview

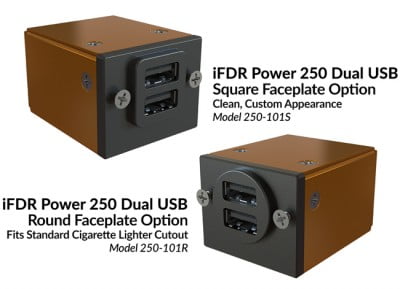

| Reliable Dual USB Power in your Panel Approved for Installation in Certified Aircraft and Rotorcraft!The iFDR Power 250-101 is a cockpit flush mounted Dual USB-A power / charging unit designed to provide reliable power for most consumer products with USB charge capabilities such as smartphones and tablets. The iFDR Power 250-101 simultaneously provides 2.7 amps at 5 VDC ± 0.25 (10 watt) for each USB port / connection. The unit can accept 9-48 VDC aircraft power and will convert down to 5 VDC. The 250-101 features green LED backlit ports for easier use in night flying conditions. The iFDR Power 250-101 is a smart USB charger and features a feedback loop to keep the 2.7 amp current stable at all times. The units are EMI shielded and also feature reverse polarity protection. Available in two faceplate styles:
Approved for FAA Certified Part 23 Aircraft and Part 27 and 29 Rotorcraft |
Features
- Smartphones / iPhones / Cell and Mobile Phones
- Tablets and iPads
- GPS Units
- Cameras / GoPros
- GPS Receivers / Augmenters
Specifications
- 2.7 amps per port (Output Current)
- Input Voltage: 9 – 48 VDC
- Output Voltage: 5 VDC +/- 0.25 per port (10 watt)
- Green LED Internal Backlighting
- Weight: 2.6 ounces
- Dimensions: 1.5″ W x 1.5″ H x 2.1″ D (panel cut 0.785″ x 0.785″)
- One year limited warranty
Documents
-
MODELO:
Square, Round
