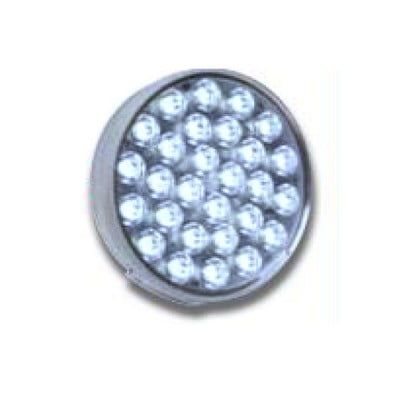

WHELEN 90433 LED 6 INCH LED LANDING LIGHT – 28V
Categorías: ELECTRICAL, WAT (formerly Whelen)
Part# 11-16907
Overview
| 90433 series is a 6 inch round, internal (non-weatherized) LED illumination product. It is styled after a PAR-46 lamp & housing internal combination. 90433 cannot ‘fit’ in place of a 6 inch light bulb, technology considerations require a stand-alone approach requiring a degree of customization to the aircraft. Unit ships with 10″ of 18ga flying leads. 28 VDC Only. |
Specifications
- Current: 2.00 amps
- Weight: 1.7 lbs (771gm)
- Dimensions: 5.75″ (146mm) Diameter, 1.11″ (28mm), Outer Ring Depth, 2.61″ (66mm) Overall Depth
