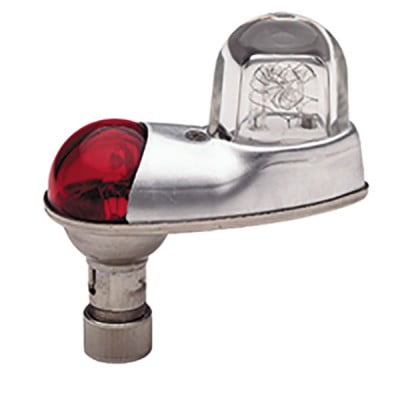

WHELEN LIGHTHEADS MODEL A650 PG/PR SERIES
Overview
| Wing tip with anti-collision & forward position lights. Can be used to convert non-Whelen position lights into a position/anti-collision light system. The small size allows for mounting into a wing tip enclosure. Available in 14 or 28 VDC and in a radio-shielded version. The forward position lamp is 26 watts. |
 |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Specifications
- Drawing Number: 70054
- Weight: 0.6 lbs. (272gm)
- Position Lamp Power
- Consumption: 2 amps @ 14 VDC; 1 Amp @ 28 VDC
- Exposed Height: 2.4” (61mm)
- Length: 4.0” (102mm)
- Width: 1.7” (43mm)
